12.3.16.3

Spain Fiscal Integration

IG OnDemand has been enhanced to send transaction details from OnDemand to EFSTA, a third-party vendor to enable accurate fiscal reporting and compliance with Spanish fiscal regulations.

The following functionality is supported with this integration:

  • Send sale transactions

  • Send refunds processed through the POS terminal

  • Print fiscal-compliant receipts in country-specific template

Important Points

  • Receipt printing is supported only in English Language.

  • It is mandatory to map payment codes with Tender IDs created in IGCM. If any unmapped tender is applied on the check, response from vendor fails and receipts are printed without fiscal information.

Changes Made in IGCM

  • A new field, UseFiscalFramework, has been added to the FiscalInterface section available under the Fiscalconfig.ini File (Kiosk/OnDemand Configuration ➜ Profiler ➜ POS Terminal ➜ Files)

    • When set to True, the Fiscal integration is supported.

    • When set to False, the Fiscal integration is not supported. By default, this field is set to False.

  • A new menu, Fiscal Mapping, has been added to the Profiler module (Kiosk/OnDemand Configuration ➜ Profiler ➜ Fiscal Mapping).

  • A new permission, Fiscal Mapping, has been added to the Permissions submenu of the Permission Group and Permission Level menus under the Administration module (User Management ➜ Administration).

Contact Agilysys to perform the initial setup.

Configurations in IGCM

Configure Permissions

In the Permissions submenu under the Permission Level menu (User Management ➜ Administration ➜ Permission Level), the following permissions must be enabled:

  • Fiscal Mapping: Basic Details

  • Fiscal Mapping: Code Mapping

  • Fiscal Mapping: Entity Registration

  • Fiscal Mapping: Main

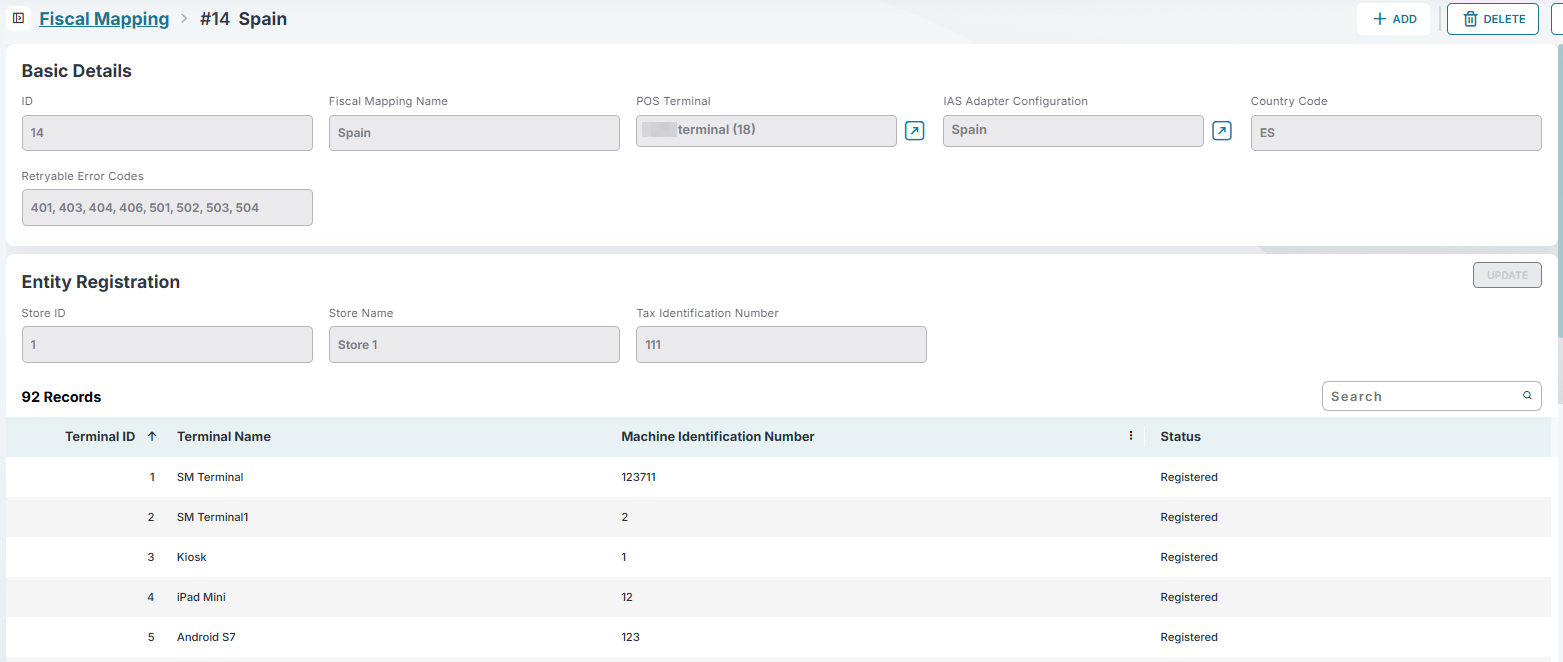

Configure Fiscal Mapping

Navigate to POS Configuration ➜ Profiler ➜ Fiscal Mapping.

Select Add to create a new record.

Refer to the table and enter the following details:

Submenu

Field

Description

Basic Details

ID

This field is auto generated.

Fiscal Mapping Name

Enter an appropriate name for the record.

POS Terminal

Select the appropriate POS terminal profile from the drop-down list.

IAS Adapter Configuration

Select the IAS adapter configuration record configured from the drop-down list.

Country Code

This is autofilled and a read-only field.

Retryable Error Codes

Enter the comma-separated error codes to retry posting a failed transaction.

Default: 401, 403, 404, 406, 501, 502, 503, 504

Entity Registration

Store ID

The ID of the store. This field is autofilled and read-only.

Store Name

The name of the store. This field is autofilled and read-only.

Tax Identification Number

Enter the tax identification number of the store. This field is mandatory.

Register/Update

Select this field to register the entity or update the existing registration.

Terminal ID

The ID of the terminal associated. This column lists all the terminal IDs configured for the store.

Terminal Name

The name of the terminal. This column lists all the terminals configured for the store.

Machine Identification Number

Enter the Machine Identification Number configured for the store. This field is optional.

Status

The registration status of the terminal configured for the store.

Code Mapping

Get Code

Select this button to retrieve the vendor-approved codes with their descriptions.

Payment Codes

API Code

This column lists the supported payment codes retrieved from the vendor.

Description

The description of the codes listed in the API Code column.

IG Tender ID(s)

The corresponding tender ID created in IGCM for the API code.

Tax Codes

API Code

This column lists the tax codes retrieved from the vendor.

Description

The description of the code listed in the API Code column.

IG Tax ID(s)

The corresponding tax ID created in IGCM for the API code.

Tax Exemption Codes

API Code

This column lists the tax exemption codes retrieved from the vendor.

Description

The description of the codes listed in the API Code column.

IG Tax ID(s)

The corresponding tax ID created in IGCM for the API code.

Supported Payment Codes

API Code

Description

POS Configuration

cash

Efectivo (Cash)

Enter comma-separated Tender ID(s) created in IGCM. For example, 10

debitcard

Tarjeta de débito (Debit Card)

Enter comma-separated Tender ID(s) created in IGCM.

creditcard

Tarjeta de crédito (Credit Card)

Enter comma-separated Tender ID(s) created in IGCM.

mobile

Proveedor de pago electrónico (Electronic Payment)

Enter comma-separated Tender ID(s) created in IGCM.

loyalty

Tarjeta prepago / Monedero (Prepaid)

Enter comma-separated Tender ID(s) created in IGCM.

voucher

Vale / Bono (Voucher)

Enter comma-separated Tender ID(s) created in IGCM.

open

Cuenta abierta / Pendiente (Open item)

Enter comma-separated Tender ID(s) created in IGCM.

none

Sin pago / No cobro (None)

Enter comma-separated Tender ID(s) created in IGCM.

Supported Tax Codes

API Code

Description

POS Configuration

A

Normal VAT rate

Enter comma-separated Tax ID(s) created in IGCM.

B

Lower VAT rate

Enter comma-separated Tax ID(s) created in IGCM.

E

Reduced VAT rate

Enter comma-separated Tax ID(s) created in IGCM.

F

Exempt

Enter comma-separated Tax ID(s) created in IGCM.

Supported Tax Exemption Code

API Code

Description

POS Configuration

Z1

Domestic transactions (Educational, healthcare, social services)

Enter the Tax ID(s) created in IGCM.

Z2

Exports of goods

Enter the Tax ID(s) created in IGCM.

Z3

Transactions treated as exports

Enter the Tax ID(s) created in IGCM.

Z4

Free zones, free warehouses, and customs/tax regimes

Enter the Tax ID(s) created in IGCM.

Z5

Supplies to another EU member state

Enter the Tax ID(s) created in IGCM.

Z6

Not subject to Art. 7, 14 and others of Provisional VAT regulation

Enter the Tax ID(s) created in IGCM.

Z7

Not subject to localization rules

Enter the Tax ID(s) created in IGCM.

Z8

Not subject due to sales made on behalf of third parties

Enter the Tax ID(s) created in IGCM.

Z9

Not subject to TAI due to location rules; foreign tax applies

Enter the Tax ID(s) created in IGCM.

Z

Other

Enter the Tax ID(s) created in IGCM.

Select Save.

Configure Tax Group

Navigate to Kiosk/OnDemand Configuration ➜ Financials ➜ Tax Group.

Select Add to configure a new tax group.

Refer to the following table and fill in the fields:

Field

Description

Basic Details

Tax Group Name

Enter a name for the tax group.

Default Taxes

Tax (defaults)

Select the appropriate taxes to map them to this tax group.

Select Save.

Enable VAT Mode

Select the Settings icon on the Home screen.

Select About.

Select Options.

Navigate to the Terminal section.

Enable the This enterprise uses VAT checkbox.

Select Save.

Implementation at OnDemand

Launch IG OnDemand.

Add preferred items to the cart.

Perform a checkout.

Select Payment and navigate to the Payment screen.

Select the preferred payment method and complete the payment. Once the payment is successful, the order details are sent to the third-party system.

Receipt Information After a Successful Tender

After a successful tender, the transaction details along with the following information are printed on receipts:

  • Fiscal Invoice Number

  • QR Code

  • Veri*factu

Scanning the QR code directs guests to AEAT (Agencia Estatal de Administración Tributaria) website, allowing guests to view the following details:

  • NIF of the invoice issuer

  • Invoice Number

  • Invoice Issue Date

  • Total Transaction Amount (including taxes)

Updated documentation: IG OnDemand - Spain Fiscal Configuration Guide
